Ideal for modernization – Maximum flow temperature up to 70 °C at an outside temperature of –10 °C
Climate Protect++ – Refrigerant R290 with a low GWP100 of 0.02 (GWP = Global Warming Potential)
OptiPerform – Reliable operation with high efficiency throughout the entire service life
Low operating costs thanks to high efficiency COP (coefficient of performance) according to EN 14511: up to 5.2 (for A7/W35)
Integrated Energy Management – System For transparency in energy consumption and costs
Easy integration into the existing heating system – Including the existing heat generator
Reduced space requirements – 60% less space required compared to comparable models ViCare
Simple and quick operation via the ViCare app
Ideal for modernization – Maximum flow temperature up to 70 °C at an outside temperature of –10 °C
Climate Protect++ – Refrigerant R290 with a low GWP100 of 0.02 (GWP = Global Warming Potential)
OptiPerform – Reliable operation with high efficiency throughout the entire service life
Low operating costs thanks to high efficiency COP (coefficient of performance) according to EN 14511: up to 5.2 (for A7/W35)
Integrated Energy Management – System For transparency in energy consumption and costs
Easy integration into the existing heating system – Including the existing heat generator
Reduced space requirements – 60% less space required compared to comparable models ViCare
Simple and quick operation via the ViCare app
The new generation of heat pumps
Reliable, compact, and efficient—Viessmann’s innovative heat pump technology allows environmental heat to be used particularly efficiently for heating and cooling. With a flow temperature of up to 70 °C, the Vitocal 150-A Hybrid was developed specifically for modernization projects. Existing radiators can continue to be used. Underfloor heating is not essential. High energy efficiency, convenient app operation, and attractive design are impressive features.

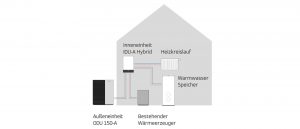

Advantageous combination for existing heating systems
The Vitocal 150-A Hybrid model is particularly suitable for supplementing an existing heating system. In this case, the heat pump provides the base load. The boiler is only switched on when temperatures are particularly low.
OptiPerform – reliable and highly efficient
The heat pumps feature the patented Hydro AutoControl® hydraulic system. This ensures reliable and highly efficient operation throughout the entire service life. Thanks to OptiPerform, installation saves time and money. And the space required is up to 60% less than for conventional systems.
Eco Select – Switch between the most cost-effective or most sustainable operating mode
Viessmann hybrid devices operate with Hybrid Pro Control. The integrated energy manager regulates the heating system according to both the general conditions, such as the outside temperature or flow temperature, and individual settings: these can include energy prices, the amount of electricity generated by the user, CO2 emissions, or heat demand. For example, you can choose whether the unit automatically uses the currently cheapest energy source in economy mode or whether it runs in eco mode with the lowest CO2 emissions per kilowatt hour of heat energy generated.
Product details Vitocal 150-A Hybrid
Nominal heat output (kW), operating point A7/W35 (according to EN 14511)
Type 04 (V 230): 4,0 kW | Type 06 (V 230): 4,8 kW | Type 08 (V 230): 5,6 kW | Type 10 (V 230): 7,3 kW
Type 10 (V 400): 7,4 kW | Type 13 (V 400): 8,1 kW | Type 16 (V 400): 9,1 kW
Coefficient of performance (COP value) at A7/W35
Type 04 (V 230): 5,0 | Type 06 (V 230): 4,9 | Type 08 (V 230): 4,7 | Type 10 (V 230): 5,0
Type 10 (V 400): 5,2 | Type 13 (V 400): 5,1 | Type 16 (V 400): 5,0
Cooling capacity
Type 04 (V 230): 4,0 kW | Type 06 (V 230): 5,0 kW | Type 08 (V 230): 6,0 kW | Type 10 (V 230): 9,6 kW
Type 10 (V 400): 9,5 kW | Type 13 (V 400):11,2 kW | Type 16 (V 400): 13,3 kW
Sound power level outside
Type 04 (V 230): 51 dB(A) | Type 06 (V 230): 51 dB(A) | Type 08 (V 230): 51 dB(A) | Typee 10 (V 230): 53 dB(A)
Type 10 (V 400): 53 dB(A) | Type 13 (V 400): 54 dB(A) | Type 16 (V 400): 55 dB(A)
Energy efficiency class (heating), range from G to A+++
Type 04 (V 230) | Type 06 (V 230) | Type 08 (V 230): A++ (G → A+++)
Type 10 (V 230) | Type 10 (V 400) | Type 13 (V 400) | Type 16 (V 400): A+++ (G → A+++)
IDU-A Hybrid indoor unit
Outdoor unit ODU 150-A 2.1 to 8.0 kW (A7/W35)
Outdoor unit ODU 150-A 2.6 to 14.9 kW (A7/W35)
