Ultra Compact  – can be fitted in a kitchen cupboard

Just 700 mm in height and 300 mm depth

DHW output ratings of 3.2 to 30 kW

ERP efficiency 92% (Class A)

Lambda Pro Combustion Control

Hydrogen Ready Boiler (H2 20% blend)

Low CO2 emissions for reduced environmental impact

Digital user interface with LED display for easy operation

Optional ViCare Thermostat means no third-party controls are required

Integral instantaneous water heater

7-year warranty with an option to extend by a further 3 years

Hydrogen Ready Boiler (H2 20% blend)

Low CO2 emissions for reduced environmental impact

Digital user interface with LED display for easy operation

Optional ViCare Thermostat means no third-party controls are required

Integral instantaneous water heater

Ultra Compact  – can be fitted in a kitchen cupboard

Just 700 mm in height and 300 mm depth

DHW output ratings of 3.2 to 30 kW

ERP efficiency 92% (Class A)

Lambda Pro Combustion Control

7-year warranty with an option to extend by a further 3 years

Key Benefits

WiFi inside

WiFi interface now included as standard
Connects the heating system directly to the internet, if required
Allows the system to be remotely monitored by your local heating engineer

ViCare Thermostat

Easy to use wireless smart room thermostat
Set room temperature & time scheduling via ViCare smartphone app
3rd party controls not required when using ViCare Thermostat

Key Benefits

WiFi inside

WiFi interface now included as standard
Connects the heating system directly to the internet, if required
Allows the system to be remotely monitored by your local heating engineer

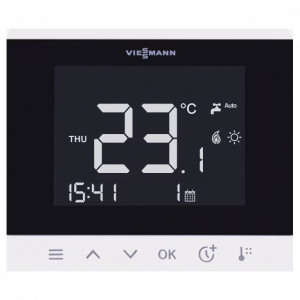

Vitotrol 100-E

Radio remote control

The Vitotrol 100-E is a battery-powered radio remote control with integrated room temperature sensor and illuminated display. It communicates wirelessly with boilers via low-power radio and can be installed in any living space.

Vitotrol-100-E controler
Touchscreen display

The Vitodens 050-W wall-mounted gas condensing boilers can be controlled by the new, LCD touchscreen or the ViCare app.

The LCD display on the boiler’s new electronic control panel indicates 7 different pieces of information and is distinguished by its very simple and comprehensible operation and the discreet “black panel” visual design.

Vitodens-050-W_boiler display
Touchscreen display

The Vitodens 050-W wall-mounted gas condensing boilers can be controlled by the new, LCD touchscreen or the ViCare app.

The LCD display on the boiler’s new electronic control panel indicates 7 different pieces of information and is distinguished by its very simple and comprehensible operation and the discreet “black panel” visual design.

Vitodens-050-W_boiler display
Gas Boiler Viessmann Vitodens
Smart control with ViCare

With our optional easy-to-install ViCare thermostat and smartphone app, you can optimise your heating environment and save energy costs from the palm of your hand – no matter where you happen to be.
Discover ViCare

Smart control with ViCare

With our optional easy-to-install ViCare thermostat and smartphone app, you can optimise your heating environment and save energy costs from the palm of your hand – no matter where you happen to be.
Discover ViCare

Gas Boiler Viessmann Vitodens
Vitotrol 100-E

Radio remote control

The Vitotrol 100-E is a battery-powered radio remote control with integrated room temperature sensor and illuminated display. It communicates wirelessly with boilers via low-power radio and can be installed in any living space.

Vitotrol-100-E controler
ViCare Thermostat

Allows you to easily control your heating and hot water system via the ViCare app.

ViCare-Climates-Sensor
stainless-steel-heat-exchanger
Inox-Radial heat exchanger and cylinder burner made from stainless steel

The high quality stainless steel Inox-Radial heat exchanger efficiently converts the supplied energy into heat. Its efficiency (to DIN) is 97 percent (Hs) [gross cv] or according to SEDBUK > 89.1 % (2012).

The stainless steel cylinder burner therefore consumes relatively little natural gas, with lower CO2 emissions and less impact on the environment as a result.

Inox-Radial heat exchanger and cylinder burner made from stainless steel
stainless-steel-heat-exchanger

The high quality stainless steel Inox-Radial heat exchanger efficiently converts the supplied energy into heat. Its efficiency (to DIN) is 97 percent (Hs) [gross cv] or according to SEDBUK > 89.1 % (2012).

The stainless steel cylinder burner therefore consumes relatively little natural gas, with lower CO2 emissions and less impact on the environment as a result.

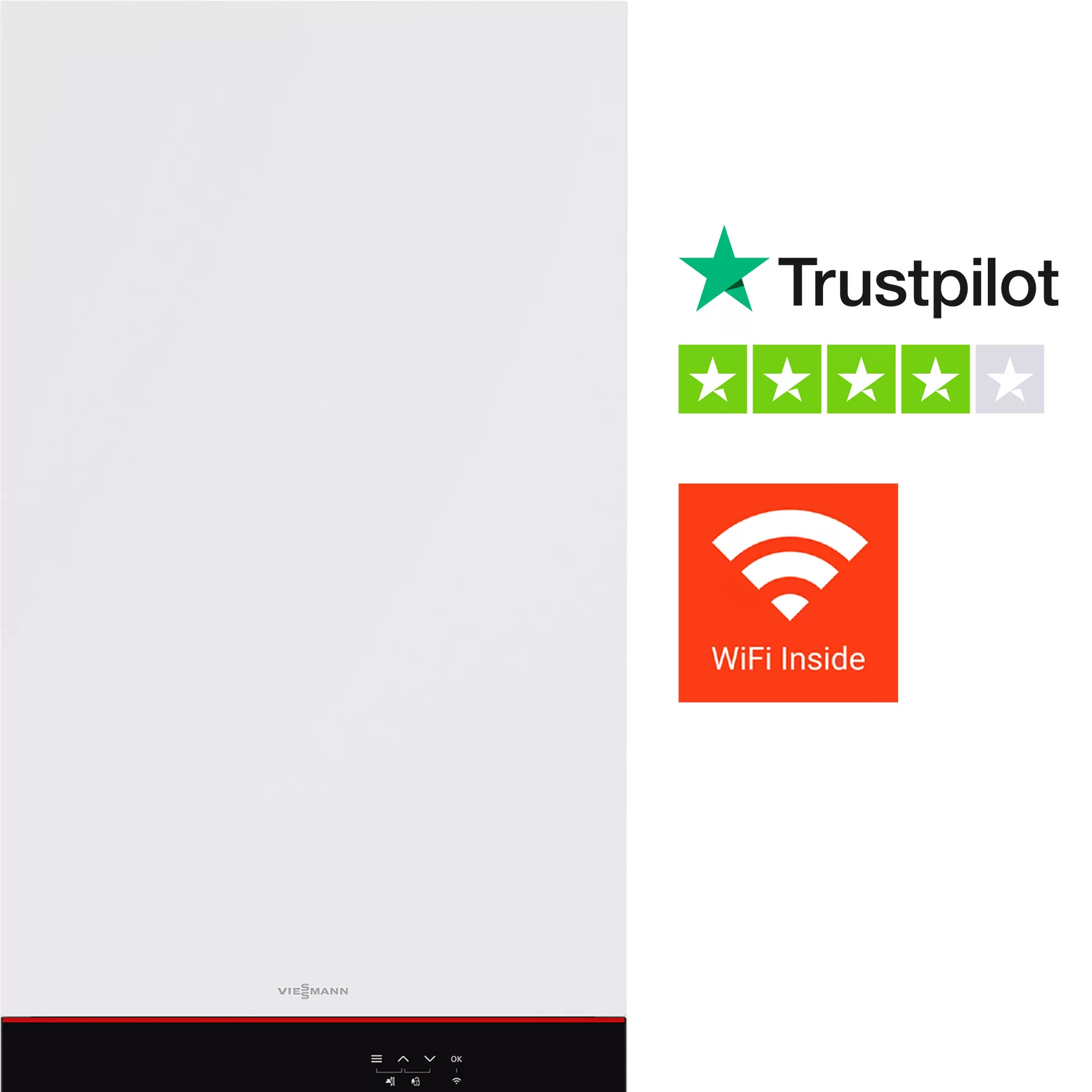

Ideal for new build or modernisation projects

With the Vitodens 050-W, Viessmann now offers an attractively priced wall mounted gas condensing boiler with proven quality. An extensive range of accessories makes the Vitodens 050-W equally suitable for either new build or modernisation.

It is offered with two DHW output ratings (3.2 kW to 30 kW), as a combi boiler with an integral instantaneous water heater. An electronic boiler control unit for thermostatic mode and weather compensated mode is already integrated into the Vitodens 050-W, along with a frost stat.

The outside temperature sensor is available as an accessory.

Quiet and compact

The Vitodens 050-W features a particularly low level of operating noise and its components are accessible from the front for ease of service and maintenance. With a height of only 700 mm, the Vitodens 050-W is one of the smallest wall mounted boilers in its class.

Its compact dimensions make it ideal as a replacement for outdated boilers in multi storey buildings – including up to five boilers on different floors connected to one vertical flue system.

Manuals & Brochures

Download

| Vitodens 050-W

Vitodens 050-W Brochure
2.3 mb, PDF

| Weather compensation

Weather compensation
2.3 mb, PDF
