Rated heating output for ground source operation 5.8 to 17.4 kW
Rated heating output for water/water operation 7.5 to 22.6 kW
Cooling function Heating and cooling in one
Small footprint For more space in the building
Barely audible even when installed near the living space Thanks to new sound insulation concept
Increased photovoltaic self-consumption – Due to low output modulation of the heat pump
Web-enabled by Vitoconnect For operation and service via free ViCare app (accessory)
High efficiency due to RCD system – Refrigerant cycle diagnostic system with electronic expansion valve (EEV)
Low running costs due to high SCOP – Seasonal coefficient of performance to EN 14825: up to 5.3 for average climatic conditions and low temperature application (W35)
High operating convenience – Heating, cooling, DHW and ventilation via integral Vitotronic control unit with plain text and graphic display
Key Benefits
Key Benefits
- Compact design and low weight
- Attractively priced heat pump for detached/semi-detached houses in the new build sector
- Quiet operation with low vibrations thanks to sound-optimised appliance design, sound power level < 45 dB(A)
- Easy to install through complete equipment level and pre-assembly
- Low running costs thanks to a high COP (coefficient of performance) to EN 14511 of up to 4.5 (brine 0 °C/water 35°C)
- High efficiency circulation pumps for the brine, heating circuits and cylinder heating already fitted
- Class A rated for energy efficiency
- Provides DHW and central heating in mono mode operation all year round
- Maximum flow temperature up to 60°C
- Prepared for optimised utilisation of photovoltaic power generated on site
- Heat meter can be retrofitted (option)
- Vitotronic 200 menu-guided control unit with plain text and graphic display for weather-compensated operation
- Designed for maximum efficiency – Energy efficiency class A++ *

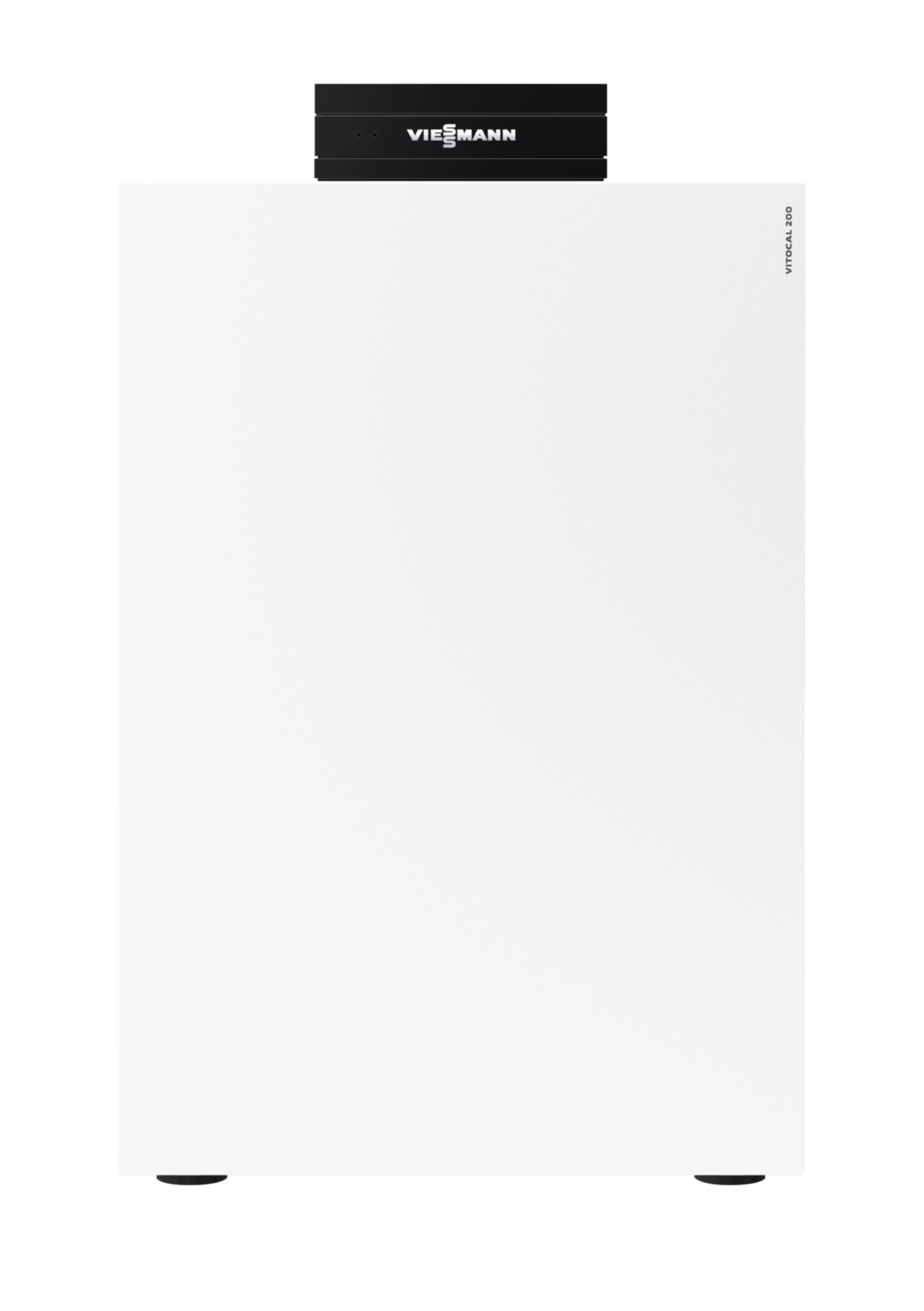

VITOCAL 200-G Heat Pump
VITOCAL 200-G Heat Pump
Operating convenience
Operating convenience
EHPA seal of approval
The EHPA seal of approval serves as proof of the COP (Coefficient of Performance) for the heat pump according to the market incentive program.
The German EHPA quality seal commission certifies that the Viessmann Vitocal 200-G heat pump meets the requirements of the EHPA quality seal regulations.
EHPA seal of approval
The EHPA seal of approval serves as proof of the COP (Coefficient of Performance) for the heat pump according to the market incentive program.
The German EHPA quality seal commission certifies that the Viessmann Vitocal 200-G heat pump meets the requirements of the EHPA quality seal regulations.
Stay connected with the Vitoconnect Wi-Fi module
Use the Vitoconnect OPTO2 series Wi-Fi module to get your boiler connected to the internet, and enable smart home functionality for your existing heating system.
Wi-Fi module for Viessmann boilers
The Vitoconnect Wi-Fi module allows smartphone and tablet users to easily monitor and operate their Viessmann boiler, and stay in control anytime, anywhere using the ViCare app.
Vitoconnect connects directly to the boiler control using an Optolink cable, and it communicates over the Internet via the local Wi-Fi network. A comprehensive security design was implemented for Vitoconnect, which successfully passed the VDE Institute test for smart home information security.
Save time, money and energy with remote Internet connectivity and automatic operation via the ViCare app and Vitoconnect!
Stay connected with the Vitoconnect Wi-Fi module
Use the Vitoconnect OPTO2 series Wi-Fi module to get your boiler connected to the internet, and enable smart home functionality for your existing heating system.
Wi-Fi module for Viessmann boilers
The Vitoconnect Wi-Fi module allows smartphone and tablet users to easily monitor and operate their Viessmann boiler, and stay in control anytime, anywhere using the ViCare app.
Vitoconnect connects directly to the boiler control using an Optolink cable, and it communicates over the Internet via the local Wi-Fi network. A comprehensive security design was implemented for Vitoconnect, which successfully passed the VDE Institute test for smart home information security.
Save time, money and energy with remote Internet connectivity and automatic operation via the ViCare app and Vitoconnect!
Straightforward installation
The Vitocal 200-G is delivered complete with integral high-efficiency pumps for the brine and heating circuits, a circulation pump for cylinder heating, and a safety assembly. This makes it much more straightforward for the contractor to install.
With its compact dimensions, low weight and quiet operation, the attractively priced Vitodens 100-W gas condensing boiler will integrate effortlessly into any living space. A high output ratio makes it a particularly suitable boiler option for use in small apartments and well insulated buildings.
Cooling and ventilation
The natural cooling function is already included. To use this, an NC-Box from the range of accessories must be added to the Vitocal 200-G.
The Vitotronic 200 can also be used to control the Vitovent 300-F ventilation unit, thus ensuring pleasant interior temperatures.
The Vitocal 200-G heat pump is already prepared for the utilisation of low-cost power generated on site by a photovoltaic system. An intelligent control unit increases on-site consumption of power generated by the photovoltaic system.
The Vitotronic 200 (WO1C) control unit offers various control strategies, such as optimised DHW heating.
System technology
